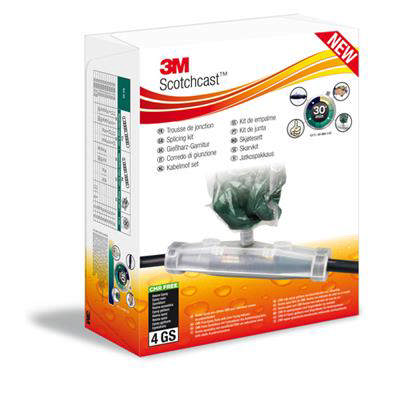

3M™ Scotchcast Casting Resin Branch Kit

• High-performance kit for electrical Y-connections; the epoxy resin is free of CMR substances, isocyanate, halogen, and SVHC
• For indoor and outdoor use in underground and underwater installations
• Continuous operating temperature: -40 °C to +110 °C
• High resistance to moisture during storage and application
• Color indicator ensures the correct mixing ratio

The 3M™ Scotchcast™ Casting Resin Connection Kit 92-NBB GS is a high-quality electrical Y-connection for applications up to 1 kV. It contains the high-performance CMR-free 3M™ Scotchcast™ Epoxy Resin 4 GS, which changes color after the two resin components are mixed correctly. The innovative closed mixing and casting system from 3M ensures fast and clean pouring of the casting compound into the transparent casting shell.

The 3M™ Scotchcast™ 92-NBB GS casting resin connection kit is designed for the insulation and mechanical protection of low-voltage cable connections up to 1 kV. The three product versions, ranging in size from 0 to 2, cover a range of cable cross-sections from 1.5 mm² to 35 mm². Sizes 1 and 2 are also available with a connector. The innovative design of the 3M™ Scotchcast™ 92-NBB GS casting resin connection kit enables quick and clean installation thanks to the new patented 3M filling spout on the resin bags and the casting shell. Correct cable positioning can be easily verified, as the casting shell is completely transparent. The water-repellent and CMR-free 3M™ Scotchcast™ 4 GS epoxy resin meets the requirements of IEC 60455-3-8 and complies with EU Directive 2011/65/EU (RoHS) and EU Directive 1907/2007/EC (REACH). It ensures the highest level of electrical insulation for professional use.
