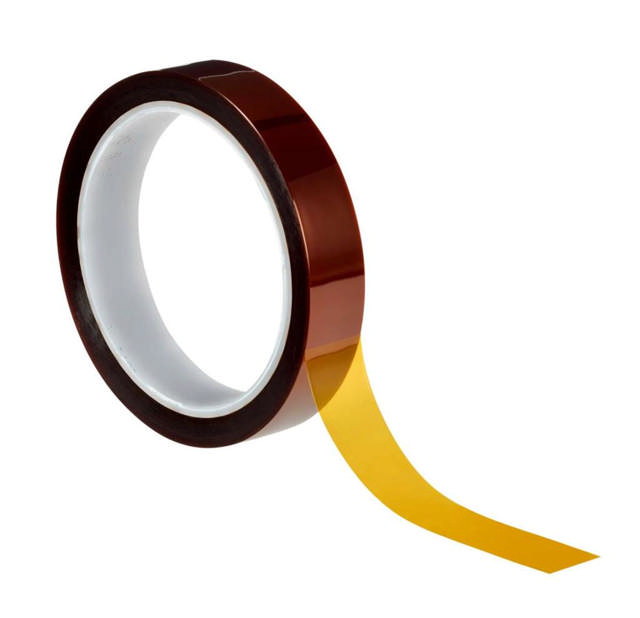

3M Adhesive Tape 5419

Details

• The polyimide adhesive tape retains its excellent ability to be peeled off the surface without leaving residue even at higher temperatures, as it does not soften even at higher temperatures.
• Increased productivity thanks to elimination of post-processing
• Protects surfaces, resulting in fewer repairs
• Available with a roll core made of either polyethylene or cardboard

3M™ 5419 High-Temperature Polyimide Adhesive Tape with polyimide film and silicone adhesive is used for masking solder joints on printed circuit boards and for other high-temperature applications. Low electrostatic charge. Color: Gold, 0.07 mm thick.

Thanks to technology specially developed by 3M, electrostatic discharge during removal from the circuit board is very low. Conventional polyimide adhesive tapes can generate an electrostatic charge of more than 10,000 volts, which could damage the components on the circuit board. 3M 5419 tape solves this problem without the typical drawbacks of conventional “antistatic” or “interference-free” tapes (e.g., variable adhesion and opacity). “Halogen-free” refers to the definition of the International Electrotechnical Commission, IEC 61249-2-21, which specifies the following limits: Max. 900 ppm chlorine content, max. 900 ppm bromine content, max. 1,500 ppm halogen content
