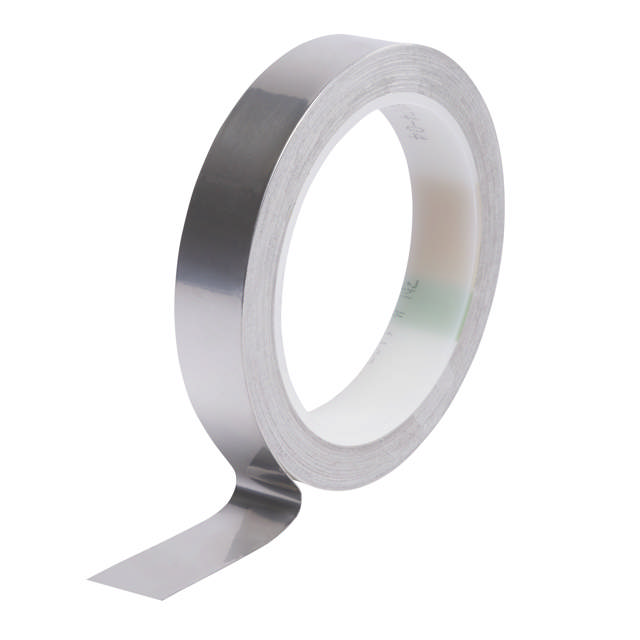

3M Tape 1183
3M Adhesive Tape 1183 19 mm x 16.5 m, thickness 0.07 mm
- High electrical conductivity and reliable shielding for EMC and grounding applications
- Excellent solderability and corrosion protection thanks to tinned copper foil
- Easy to work with due to removable protective film and excellent punchability
Recommended applications:
- EMC shielding in electronic systems and components
- Grounding and dissipation of electrostatic charges in technical installations
| QTY | pr. PCS |
| 1 | EUR 58,13 |
Beschreibung
3M™ Tinned Copper Foil Shielding Tape 1183 is a 0.066 mm thick specialty tape with a conductive acrylic adhesive that ensures reliable electrical conductivity from the substrate to the foil surface. The tinned copper foil offers excellent solderability, high corrosion resistance, and is compatible with a wide variety of materials such as aluminum, galvanized steel, or tin alloys. Thanks to the removable protective film, the tape is particularly easy to apply and die-cut. It is suitable for EMC shielding, grounding, and the dissipation of electrostatic charges. In addition, it is flame-retardant according to UL 510, solvent-resistant, and approved for applications in the temperature range from -40 °C to +130 °C at a rated voltage of up to 600 V.
Technische Spezifikationen
- Name
- 3M Tape 1183
- Number
- 11831916,5
- 3M Katalognummer
- 7100116896
- Weight
- 0.19
- Länge
- 16.5 m
- EAN
- 04054596283015
- Dicke
- 0.07 mm
- Breite
- 19 mm
