3M Tape 1170
3M Adhesive Tape 1170 584 mm x 16.5 m, Thickness 0.08 mm
- High shielding performance: Typical shielding attenuation over 85 dB from 1 MHz to GHz
- Reliable contact: Electrically conductive acrylic adhesive for low resistance and reliable conductivity
- Practical: Peelable release liner for easy handling and precise die-cutting
Recommended applications:
- Shielding of cables, enclosures, and components against electromagnetic interference
- Dissipation of electrostatic charges and safe grounding in technical installations
| QTY | pr. PCS |
| 1 | EUR 1.363,07 |
Beschreibung

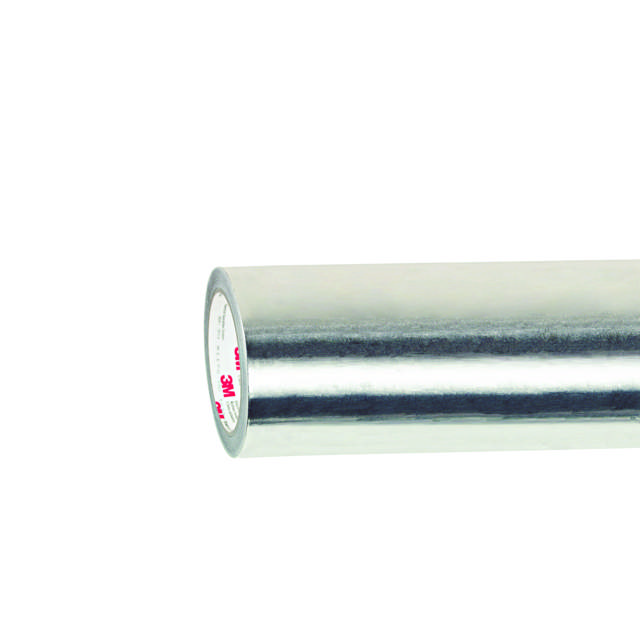

3M™ Aluminum Foil Shielding Tape 1170 is a conductive EMI shielding tape with an acrylic adhesive that ensures reliable electrical contact. The soft aluminum backing, combined with the conductive adhesive, provides stable shielding performance with a typical shielding attenuation of over 85 dB in the frequency range from 1 MHz up to the GHz range. Thanks to the removable protective liner, easy application and precise die-cutting are possible. The tape is flame-retardant, RoHS-compliant, UL-listed, and suitable for dry applications up to 600 V. With an operating temperature range of -40 °C to +130 °C, it offers high durability and versatile applications, e.g., for EMI shielding, grounding, or dissipating static charge.
Technische Spezifikationen
- Name
- 3M Tape 1170
- Number
- 117058416,5
- 3M Katalognummer
- 7000009136
- Länge
- 16.5 m
- EAN
- 04710367098836
- Dicke
- 0.08 mm
- Breite
- 584 mm
