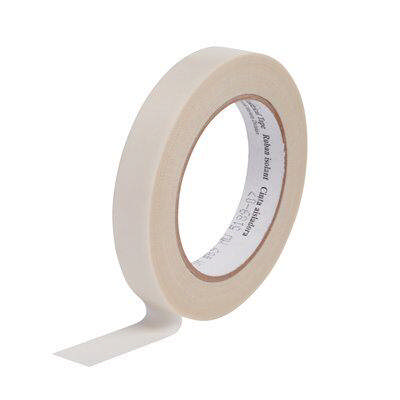

3M Tape 69
3M Adhesive Tape 19 mm x 33 m, thickness 0.18 mm
- Heat-resistant & insulating – suitable for use up to 200 °C (UL) / 180 °C (CSA) and 3,000 volts breakdown voltage.
- Extremely robust – tear- and abrasion-resistant for long-lasting use under heavy loads.
- Versatile and adaptable – flexible, printable, and with excellent resin and paint adhesion.
Recommended applications:
- Electrical insulation of high-temperature components in motors, generators, and transformers.
- Protective wrapping against heat radiation in demanding industrial environments.
| QTY | pr. PCS |
| 1 | EUR 50,35 |
Beschreibung
3M™ Fiberglass Tape 69 is a white, 0.178 mm thick high-performance tape with a 0.140 mm thick fiberglass backing. It is coated on one side with a non-corrosive, pressure-sensitive silicone adhesive that is high-temperature resistant and flame retardant.
Thanks to its UL and CSA approvals, it withstands temperatures up to 200 °C (UL) and 180 °C (CSA) and offers a dielectric strength of up to 3,000 volts. The robust glass fabric structure makes the tape particularly tear- and abrasion-resistant, ensuring reliable performance even under high mechanical stress, such as in electric motors or transformers.
Its flexibility allows for optimal adaptation to various surfaces, while the printable fabric structure provides excellent adhesion for resins and paints. The tape is UL-recognized, RoHS-compliant, QPL-listed (QPL-19166 per MIL-I-19166), and has a shelf life of up to 5 years when stored properly.
Technische Spezifikationen
- Name
- 3M Tape 69
- Number
- 691933
- 3M Katalognummer
- 7100090267
- Weight
- 0.17
- Länge
- 33 m
- EAN
- 04054596141971
- Dicke
- 0.18 mm
- Breite
- 19 mm
