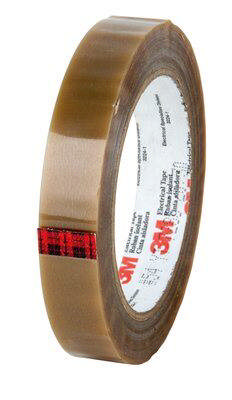

3M Adhesive Tape 58
58666
3M Adhesive Tape 58 6 mm x 66 m, thickness 0.08 mm
| QTY | pr. PCS |
| 1 | EUR 12,29 |
Lieferzeit 1 - 7 Werktage
Beschreibung
Details
- Maximum temperature resistance up to 130°C
- UL® Class B certification (130°C) - E 17385 OANZ 2
- High tear resistance
- High elasticity
- Visual inspection possible due to transparent backing
- Very high electrical breakdown strength
- Backing: Polyester film
- Rubber adhesive, heat-curing
The transparent ET 58 polyester film with acrylic adhesive has a dielectric strength of 7000 V. Insulation class: B (130 °C)
The 3M™ Polyester Film 58 is an exceptionally thin and elastic insulating tape characterized by high adhesive strength and tear resistance. While the heat-curing rubber adhesive is extremely resistant to "flagging," the backing exhibits very high tear and abrasion resistance. The tape, which is 0.08 millimeters thick overall, withstands a breakdown voltage of 7,000 volts and, with a temperature resistance of up to 130 °C, belongs to insulation class B. The transparent polyester film is ideal for covering coils and for interlayer insulation where high electrical breakdown resistance is required.
Technische Spezifikationen
- Name
- 3M Adhesive Tape 58
- Number
- 58666
- Länge
- 66 m
- Dicke
- 0.08 mm
- Breite
- 6 mm
