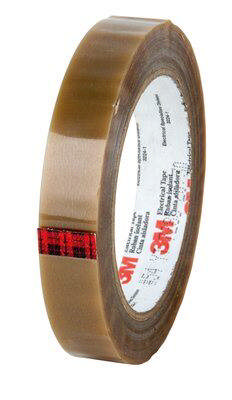

3M Adhesive Tape 58
581066
3M Adhesive Tape 58 10 mm x 66 m, thickness 0.08 mm
| QTY | pr. PCS |
| 1 | EUR 12,16 |
Lieferzeit 1 - 7 Werktage
Beschreibung
-Maximum temperature resistance up to 130°C
-Very high electrical breakdown strength
-High tear resistance
-High elasticity
-Visual inspection possible due to transparent backing
-UL® certification - Class B (130°C) - E 17385 OANZ 2
-Backing material: Polyester film
-Rubber adhesive, heat-curing
The transparent ET 58 polyester film with acrylic adhesive has a dielectric strength of 7000 V. Insulation class: B (130 °C)
The 3M™ Polyester Film 58 is an exceptionally thin and flexible insulating tape characterized by high adhesive strength and tear resistance. While the heat-curing rubber adhesive is extremely resistant to "flagging," the backing exhibits very high tear and abrasion resistance. The tape, which is 0.08 millimeters thick overall, withstands a breakdown voltage of 7,000 volts and, with a temperature resistance of up to 130 °C, belongs to insulation class B. The transparent polyester film is ideal for covering coils and for interlayer insulation where high electrical breakdown resistance is required.
Recommended Applications
-Securing connection wires and positioning
-Interlayer insulation for very high dielectric strength
-Core and layer insulation as well as terminal wrapping of small transformers
-Wrapping and insulation of coils and wires
Technische Spezifikationen
- Name
- 3M Adhesive Tape 58
- Number
- 581066
- Länge
- 66 m
- Dicke
- 0.08 mm
- Breite
- 10 mm
