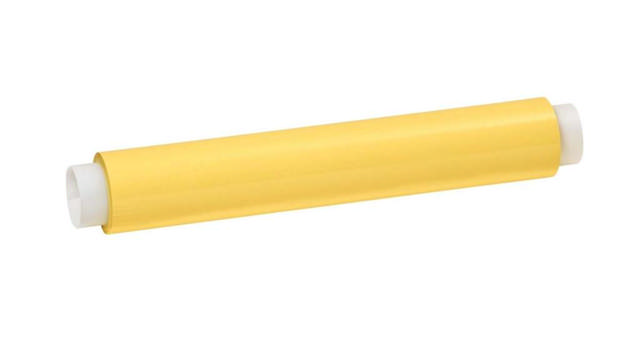

3M Adhesive Tape 56
3M™ ET 56 Polyester Film, Yellow, 20 mm x 66 m, Thickness 0.06 mm
- UL-listed, CSA-certified, and RoHS 2011/65/EU compliant
- Maximum temperature resistance up to 130 °C
- Dielectric strength: 5,500 V
Recommended applications:
- For interlayer insulation and cover wrapping on coils
| QTY | pr. PCS |
| 1 | EUR 24,44 |
Beschreibung
- The pressure-sensitive thermosetting rubber adhesive and the polyester film backing ensure optimal adhesion
- Suitable for coil protection and layer insulation
- Suitable for a temperature range of 0 to 130 °C
- UL-listed and RoHS 2011/65/EU compliant
- Maximum temperature resistance up to 130 °C
- Dielectric breakdown voltage: 5,500 V
- UL-listed and RoHS 2011/65/EU compliant
3M™ Polyester Insulation Tape 56 is a moisture-resistant insulation tape. This tape is suitable for insulation applications that require high dielectric strength. This tape is rated for 600 V and withstands a temperature range of 0 to 130 °C.
3M™ Polyester Film 56 is an exceptionally thin and flexible insulating tape characterized by high adhesive strength. While the heat-curing rubber adhesive is highly resistant to "flagging," the backing exhibits very high tear and abrasion resistance. The adhesive tape, which is 0.06 millimeters thick overall, withstands a breakdown voltage of 5,500 volts and, with a temperature resistance of up to 130 °C, belongs to insulation class B. The yellow polyester film is ideal for interlayer insulation and top wrapping on coils.
Technische Spezifikationen
- Name
- 3M Adhesive Tape 56
- Number
- 562066
- Länge
- 66 m
- Dicke
- 0.06 mm
- Breite
- 20 mm
