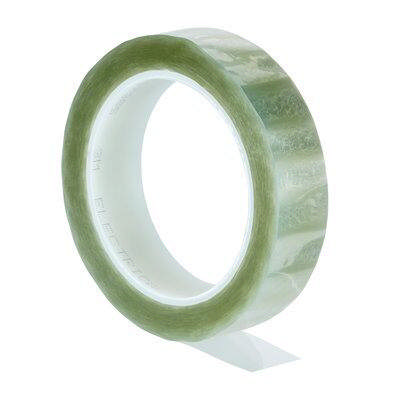

3M Adhesive Tape 5
57566
3M Adhesive Tape No. 5, 75 mm x 66 m
| QTY | pr. PCS |
| 1 | EUR 66,81 |
Lieferzeit 1 - 7 Werktage
Beschreibung
-Maximum temperature resistance up to 130°C
-High electrical breakdown strength
-High tear resistance
-High elasticity
-Visual inspection possible due to transparent backing material
-Transformer oil resistant
-High resistance to solvents and chemicals
-Flame retardant per UL® 510
-Printable
-UL® certification - Class B (130°C) - E 17385 OANZ 2
-Backing material: Polyester film
The transparent ET 5 polyester film with acrylic adhesive has a dielectric strength of 5500 V. Insulation class: B (130 °C)
The 3M™ Polyester Film 5 is an exceptionally thin and elastic insulating tape that also offers high durability. While the acrylic adhesive is extremely resistant to solvents and "flagging," the backing is characterized by very high tear and abrasion resistance. The tape, which is 0.06 millimeters thick, withstands a breakdown voltage of 5,500 volts and, with a temperature resistance of up to 130 °C, belongs to insulation class B. The transparent polyester film is ideal for securing connection wires, as it allows for visual verification of the correct pin assignment.
Recommended Applications
-Securing connection wires and positioning
-Covering coils and capacitors
-Core and layer insulation as well as terminal wrapping of small transformers
-Wrapping and insulation of coils and wires
Technische Spezifikationen
- Name
- 3M Adhesive Tape 5
- Number
- 57566
- Länge
- 66 m
- Dicke
- 0.06 mm
- Breite
- 75 mm
