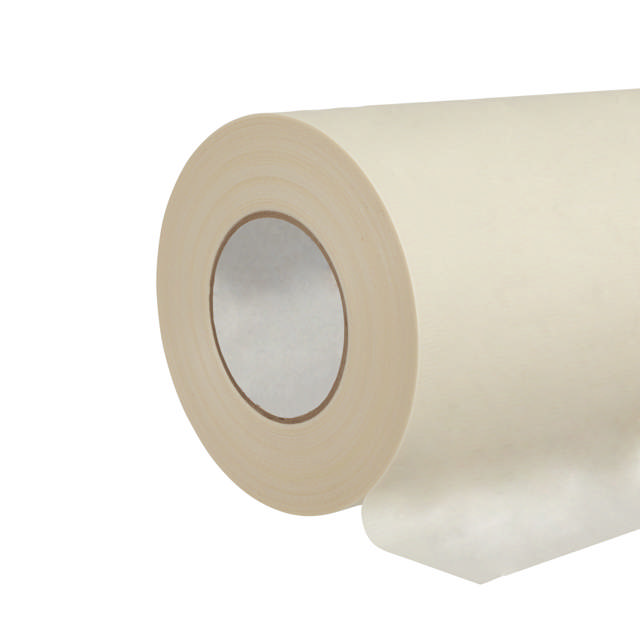

3M Adhesive Tape 1076
3M Adhesive Tape 1076 584 mm x 55 m, Thickness 0.25 mm
- Oil-resistant & durable – reliable adhesion even after prolonged contact with transformer fluid
- Optimized insulation – saturable backing prevents air entrapment
- Robust & durable – high resistance to chemicals and solvents, temperature-resistant from -40 to +105 °C
Recommended applications:
- Insulation tape for oil-cooled distribution transformers
- Use in coil winding, in combination with diamond paper and epoxy resin
| QTY | pr. PCS |
| 1 | EUR 858,73 |
Beschreibung
3M™ Filament-Reinforced Insulating Tape 1076 is specifically designed for oil-cooled distribution transformers. With a thickness of 10 mil, it provides reliable insulation even under demanding conditions. The reinforced paper backing made of glass filament nonwoven provides additional stability, while the oil-resistant acrylic adhesive retains its adhesive strength even after prolonged exposure to transformer fluids.
The backing material is fully saturable, thereby preventing air pockets between the adhesive layers. This enables a uniform build-up of insulation. Thanks to its special coating, the tape bonds excellently with diamond paper and epoxy resin during the transformer curing process. It is suitable for temperatures ranging from -40 to +105 °C, complies with RoHS 2011/65/EU, and offers excellent resistance to solvents and chemicals. Its high stiffness also facilitates handling during coil winding.
Technische Spezifikationen
- Name
- 3M Adhesive Tape 1076
- Number
- 107658455
- 3M Katalognummer
- 7100002898
- Länge
- 55 m
- EAN
- 50051128595089
- Dicke
- 0.25 mm
- Breite
- 584 mm
