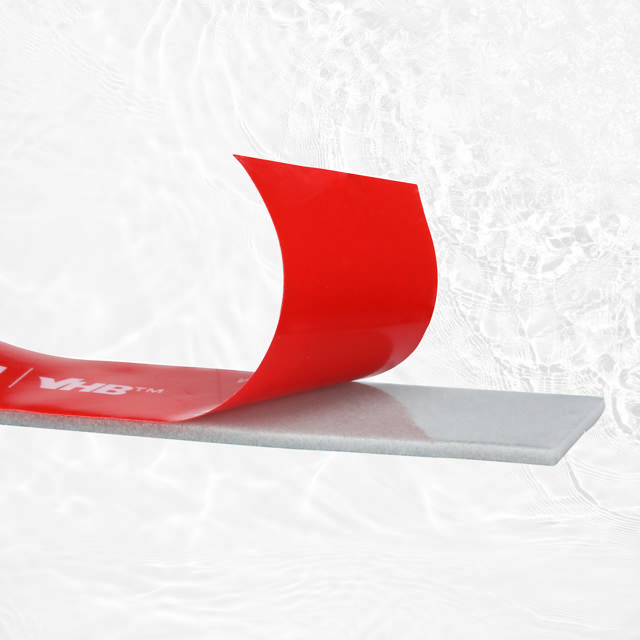

3M VHB Adhesive Tape MAX-230GF
3M VHB Adhesive Tape MAX-230GF 1120 mm x 22 m / Thickness 2.3 mm / gray
- Extremely high adhesive strength up to 3.24 MPa – stronger than standard VHB™ adhesive tapes
- Immediate handling strength for faster assembly and process times
- Reduced material usage due to narrower adhesive lines with the same strength
Recommended applications:
- Structural bonding with high strength requirements in mechanical and plant engineering
- Fastening of panels, frames, and stiffening elements in industry and construction
| QTY | pr. PCS |
| 1 | EUR 6.191,12 |
Beschreibung
The 3M™ VHB™ Adhesive Tape Max Series was developed for applications requiring the highest strength and reliability. As the strongest acrylic adhesive tape in the 3M™ VHB™ portfolio, this series offers an exceptionally high lap joint strength of up to 3.24 MPa (470 psi), making it a high-performance alternative to screws, rivets, certain welding methods, and liquid adhesives.
The viscoelastic acrylic adhesive provides immediate handling strength, allowing components to be processed quickly. Time-consuming steps such as drilling, welding, or post-cleaning are eliminated, which reduces assembly times and simplifies production processes. At the same time, the tape enables a smooth, seamless appearance without visible fasteners.
The 3M™ VHB™ Max Series tape is designed for metals and other materials with high surface energy and offers a high degree of design freedom. The use of narrower adhesive lines and smaller adhesive areas reduces material usage and weight. In combination with the 3M™ VHB™ Max Adhesion Promoter, high and reliable adhesion is achieved on a wide variety of substrates and under various environmental conditions. The series is available in several thicknesses, covering a broad spectrum of demanding industrial applications.
Technische Spezifikationen
- Name
- 3M VHB Adhesive Tape MAX-230GF
- Number
- MAX_230GF112022
- 3M Katalognummer
- 7100373695
- Länge
- 22 m
- Dicke
- 2.3 mm
- Breite
- 1120 mm
